Navigation
Compatible with leading marine chart systems, the navigation view is designed for both detailed route planning and simplified day-to-day operation.
Display and app
The Complete Boat Experience

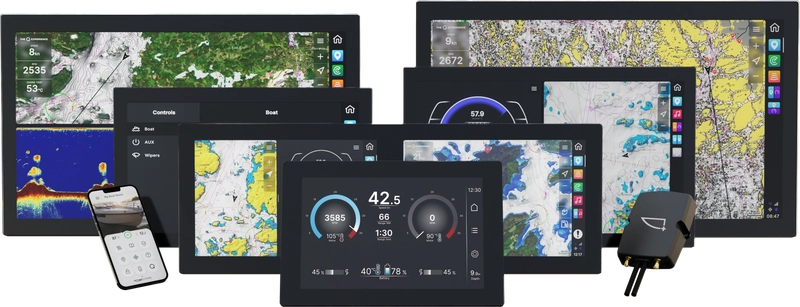

The display platform is an all-in-one bridge between propulsion control, navigation, connectivity, and onboard user experience. It is available in seven sizes and designed to keep important vessel data clear, fast, and easy to access.
Request a Quote
Share your preferred screen size, helm layout, and feature scope to define the right display setup.
Core advantages
- One interface for major vessel functions
- Connected experience with mobile app
- Scalable across different boat classes
Propulsion interface
Dashboard and easy commissioning
The interface combines daily operation and setup in one place. The main dashboard shows key voyage data, and commissioning can be completed directly on the display during propulsion installation.
The commissioning process supports propulsion model selection, setup adjustment, and RPM calibration for the installed propeller to help match the propulsion setup to the vessel and improve efficiency.
Display functions
- Tachometer with live motor-speed display
- System temperature indication for thermal awareness
- Smart energy management views
- Maintenance schedule and smart service reminders
- Operational safety messages and warnings
- Automatic diagnostics with alarm history
In-use capabilities
Entertainment and connectivity
The display combines onboard entertainment and connectivity in one interface. With a built-in audio amplifier and Bluetooth support, music can be streamed directly through the vessel speakers.
Integrated 4G and Wi-Fi support also allows hotspot setup through mobile data or marina guest Wi-Fi, so everyone onboard can stay connected during the trip.
Digital switching
The digital switching interface replaces large physical switch panels with touchscreen-based control and visual status feedback. Functions such as lighting, pumps, fans, heating, hatches, and other auxiliary loads can be managed directly on the display.

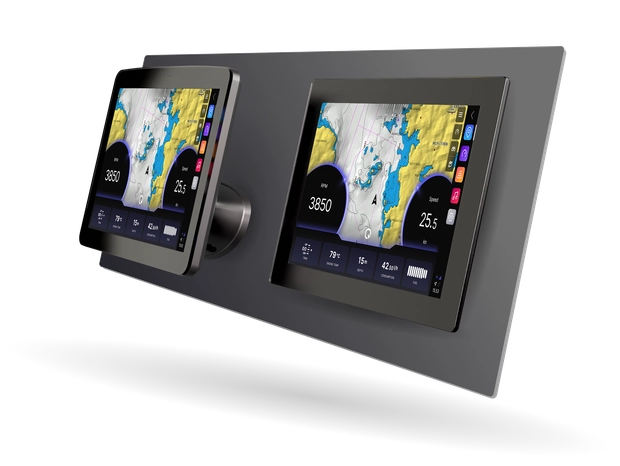

Mounting options
Choose preferred mounting style
Multi-function displays are available with two mounting options: Classic mount and Float mount. This helps the display fit different boat sizes and console layouts.

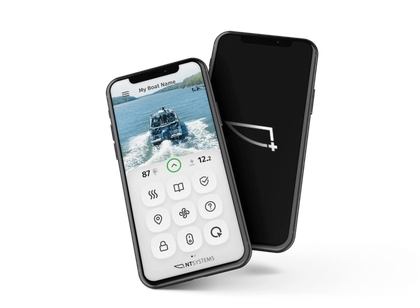

Mobile app
Always in touch with your boat
The app extends the onboard experience beyond the helm. Monitor key parameters remotely, prepare selected onboard systems before departure, and keep vessel status visible while docked.
- Available for Android and iOS
- Remote status monitoring and alerts
- Supports connected owner and operator workflows
Available display models and technical specifications
The NT Systems display range covers compact to large-format helm layouts, with key performance and dimensional data shown below.
Tip: Select a model in the table header to easily see its specifications.
| 5" | 7" | 10" | 10" (dual) | 12" | 16" | 22" | 24" | |
|---|---|---|---|---|---|---|---|---|
| Resolution | 800 x 400 | 1024 x 600 | 1280 x 800 | 1920 x 1080 | ||||
| Touch screen | Projected Capacitive Touch Panel | |||||||
| Surface treatment | Anti-reflective and anti-fingerprint coating | |||||||
| Brightness [nits] | 850 | 1000 | 1400 | 850 | ||||
| Contrast ratio | 800:1 | 1000:1 | 800:1 | 1000:1 | ||||
| Viewing angle | 85° | 80° | ||||||
| Size [mm] | 136 x 93 | 180 x 120 | 260 x 177 | 510 x 180 | 303 x 209 | 391 x 240 | 518 x 318 | 570 x 348 |
| Multi-Function Features | ||||||||
| Navigation | Navionics+ and Navionics Platinum+ charts with 3D mode, detailed sonar charts, depth shading, port-to-port routing, and 10 Hz GPS. | |||||||
| Connectivity | 4G/LTE, Wi-Fi (client and hotspot sharing), Bluetooth remote control, NMEA 2000 (AIS, digital switch, engine data), Data BUS, OTA updates, and extensions such as fishfinder and radar. | |||||||
| Entertainment | 2 x 20W audio amplifier, dual stereo RCA unamplified audio-output, and FM/DAB radio receiver. | |||||||
FAQ
Display and app integration
Practical answers about display features, commissioning workflows, onboard controls, and app connectivity.
What does the display and app ecosystem include?
Display and app solutions can include propulsion monitoring, navigation interfaces, digital switching, connectivity functions, remote checks, and selected onboard control features depending on configuration.
Which chart and navigation options are supported?
Navionics+ and Navionics Platinum+ maps with 3D mode, detailed sonar charts, depth shading, port-to-port routing.
Can propulsion commissioning be handled from the display?
Yes. The non-multi function display and service tool support commissioning where propulsion model selection, key setup values, and calibration can be aligned for the installed vessel configuration.
Can the display integrate vessel-specific third-party onboard systems?
Yes. Depending on available interfaces and data points, the MFD version can integrate third-party onboard systems via the digital switching module.
Can operators access trip data and system history from the display?
Yes. Depending on configuration, the display can provide trip and operational history views, including diagnostics and alarm history to support operation, troubleshooting, and service planning.
Do you support remote monitoring and app-based interaction?
Yes. Remote monitoring and selected remote options are available through the mobile app, depending on final project scope, and system configuration.
How does the display support periodic maintenance and winterization?
The display can support periodic maintenance planning with reminders and checklists, and in configured systems it can also assist winterization/lay-up preparation, including relevant pump-control actions.
Which display sizes are available?
The display range is available in multiple sizes, including 5, 7, 10, 12, 16, 22, and 24 inches.
Can one display handle dashboard, propulsion, navigation, entertainment, and switching together?
The non-MFD version is designed as a central helm interface for propulsion dashboard, trip and logs, maintenance, charging status, and commissioning. In the multi-function version, the display also includes navigation, entertainment, and digital switching.
Can the display also show charging status?
Yes. The display shows charging-related information such as state of charge, remaining time to full charge, charging power, and shore current limit.
Can the display work together with throttle levers?
Yes. The display is designed as an interface to manage specific throttle lever features.
How are warnings and faults handled on the display?
Warnings and faults appear as on-screen alarms that can be acknowledged by the operator. Acknowledged events remain available in the system log history for later review.
Does the display provide trip data?
Yes. The display provides trip data views, including current trip, since-last-charge trip, and total lifetime values (depending on configuration).
